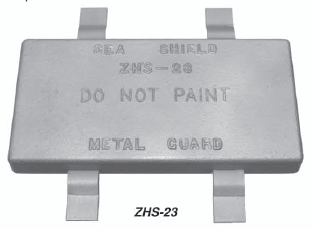

Weld on Anodes ZHS-23 Zinc
Type: Hull Anodes
Vendor: Sea Shield Marine
Description:
Galvanized steel straps are on 6″ centers for weld-on installation.
ZHS can be ordered with aluminum strap *with bronze straps.
| Part No | WT(lb) | Thickness | Width | Length | Steel Strap Size |
|---|---|---|---|---|---|
| ZHS-23 | 23 | 1-1/4″ | 6″ | 12″ | 3/16″ x 1-1/4″ x 10″ |
| ZHS-42 | 42 | 2-1/2″ | 6″ | 12″ | 3/16″ x 1-1/4″ x 10″ |
| ZHB-23* | 23 | 1-1/4″ | 6″ | 12″ | 3/16″ x 1-1/4″ x 10″ |
All of our Weld-on anodes are precision manufactured using the highest grade metals and conform to Mi-Spec standards (Mil-A-18001 Zinc & Mil-A-24779 Aluminum). We’ve taken special care to makes sure that versatility exits throughout the majority of our weld-on anode line: All anodes are available with standard galvanized steel straps for weld-on installation. Certain anode units can be ordered with aluminum or bronze weld-on straps upon request. Custom galvanized steel straps on select models also allow for bolt-on installation. Please contact us for inquiries
