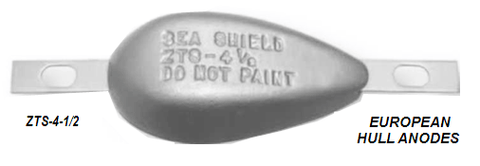

Weld on Anodes ZTS-4-1/2 Zinc
Type: Hull Anodes
Vendor: Sea Shield Marine
Description:
- ZTS-4-1/2 with two 1/2″ slotted holes on 7-7/8″ centers.
- Galvanized steel straps for weld-on installation.
- ZTS-P-5 with 12″ copper pigtail.
- ZTS can be ordered with aluminum straps.
| Part No | WT(lb) | Thickness | Width | Length | Steel Strap Size |
|---|---|---|---|---|---|
| ZTS-4-1/2 | 4.4 | 1-1/2″ | 3″ | 5-7/8″ | 1/8″ x 3/4″ x 10″ |
| ZTS-5 | 5 | 1-1/2″ | 3″ | 9″ | 1/8″ x 3/4″ x 12″ |
| ZTS-P-5 | 5 | 1-1/2″ | 3″ | 9″ | 1/8″ x 3/4″ x 12″ |
